Elsa Dress Study

Digital Garment Creation, Simulation & Lookdev

For this personal project, I designed a new dress for Elsa from Frozen, taking inspiration from unused concepts and historical clothing references.

I wanted to create something that felt consistent with her original design while learning more about garment construction in Marvelous Designer, from creating the sewing patterns to preparing the final model for texturing and rendering.

Process

1. Concept & References

I collected references from different Frozen designs and historical dresses, looking at their silhouettes, construction and fabric details.

Finally, I decided on a long, fitted dress with wide sleeves, a layered skirt and snowflake details, keeping the blue colour palette associated with Elsa.

2. Garment Creation

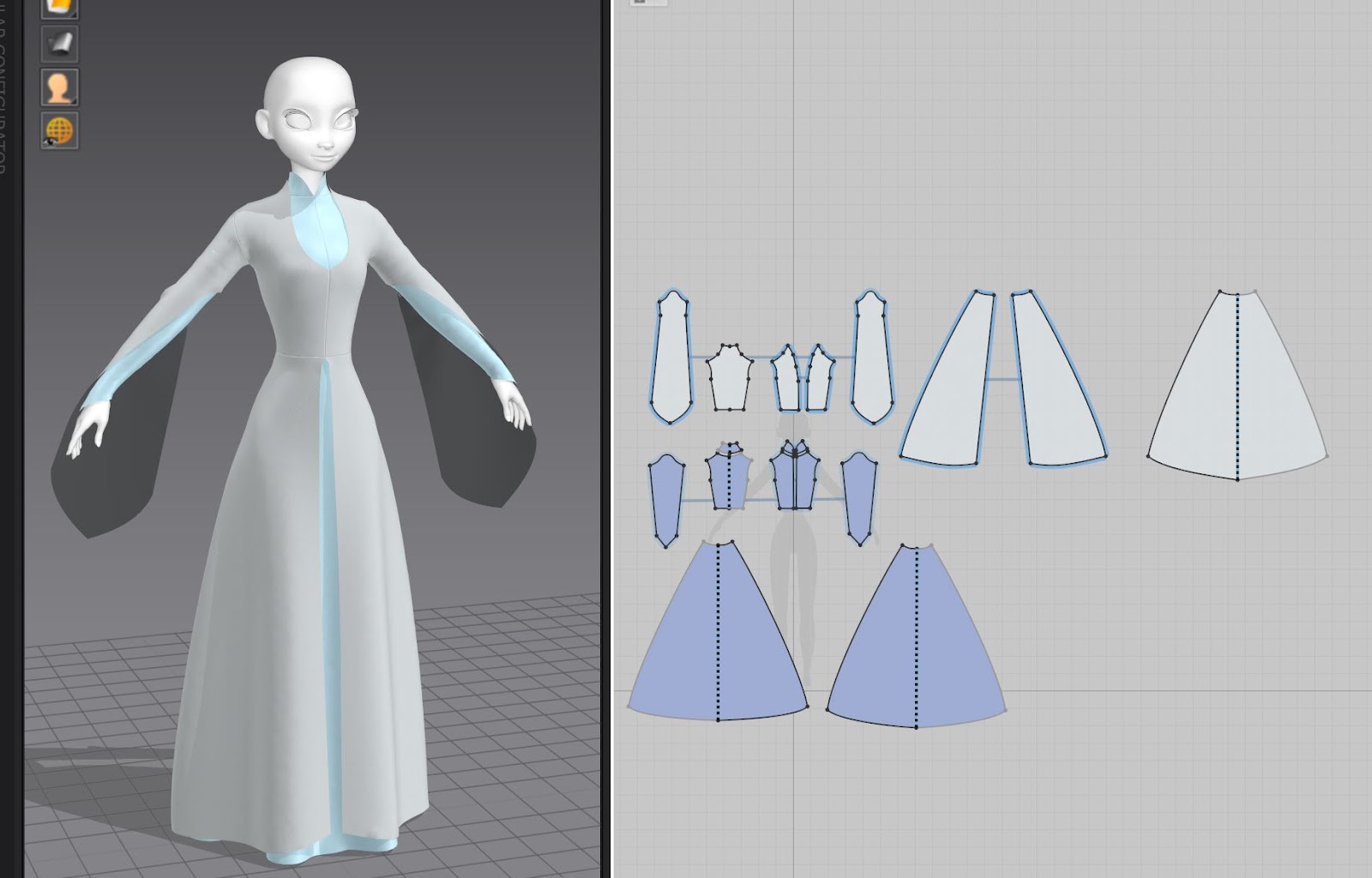

The dress was created in Marvelous Designer, starting with the inner garment and gradually adding the outer layers. I built the bodice, sleeves, skirt and belt from 2D sewing patterns, using symmetry and internal lines to control their shapes.

Some parts needed to be simulated separately to prevent the layers from interfering with each other. I used freeze states and adjusted the fabric settings to help control how the different pieces settled.

I also prepared the dress for animation, testing it with a pose turnaround and a walk cycle and adjusting the pinned areas and fabric parameters where needed, particularly around the neckline and sleeves.

    3. Retopology & UVs (Maya)

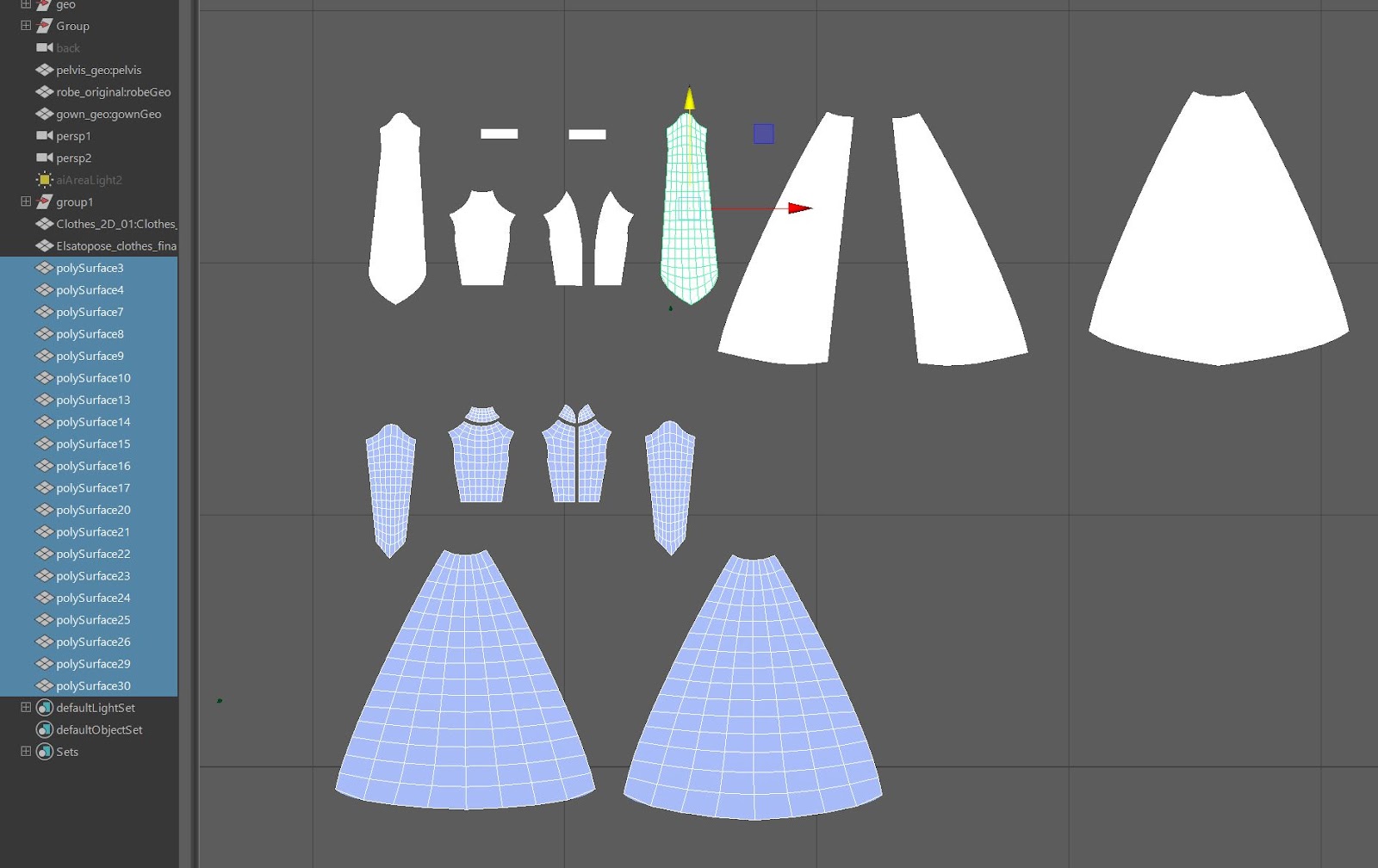

    Once the shapes were working, the garment was brought into Maya for retopology. I worked directly over the flat 2D patterns, using them as a guide to build cleaner geometry and afterwards wrapping them onto the simulated meshes. It was important to pay particular attention to keeping compatible edge counts along the seams so the different pieces could be joined correctly.

    The final garment was organized into two UDIMs for texturing.

    4. Texturing, Lookdev & Rendering

    Texturing was done in Substance 3D Painter, focusing on the blue gradients and snowflake patterns along the lower part of the skirt. I made some additional adjustments in Photoshop before preparing the shaders in Maya and Arnold.

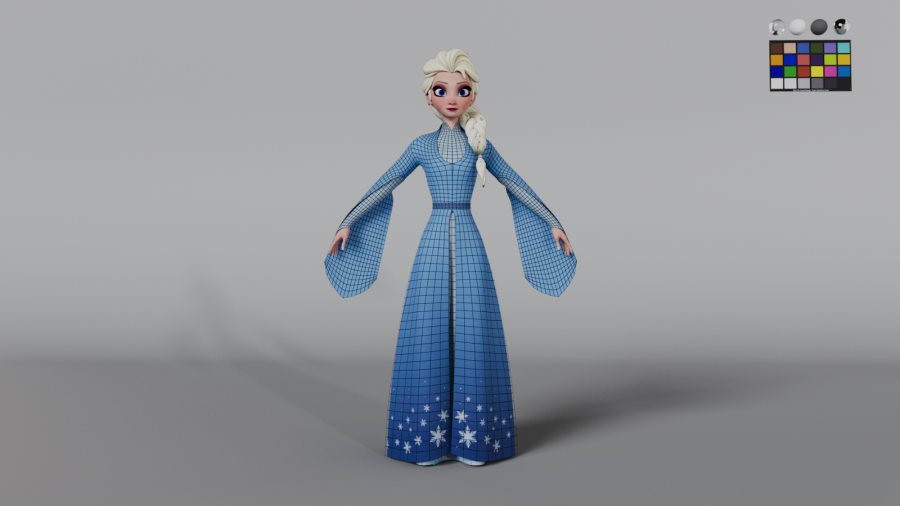

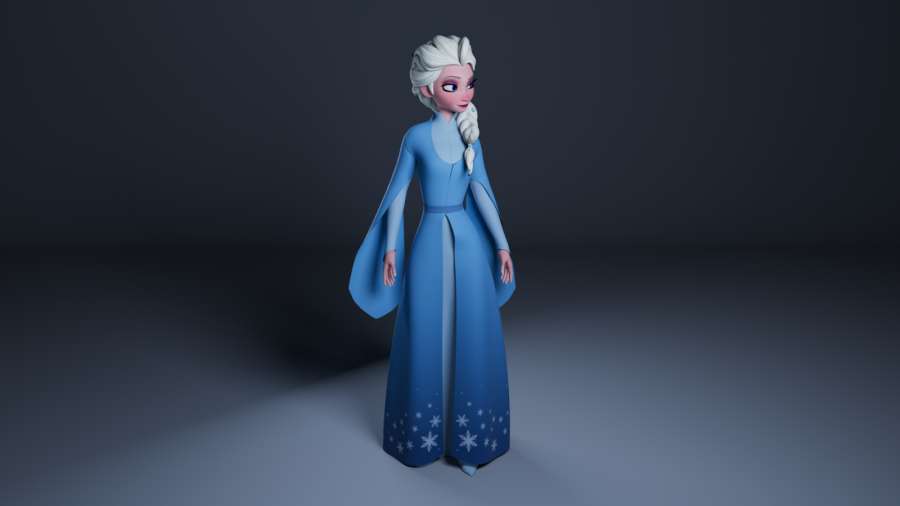

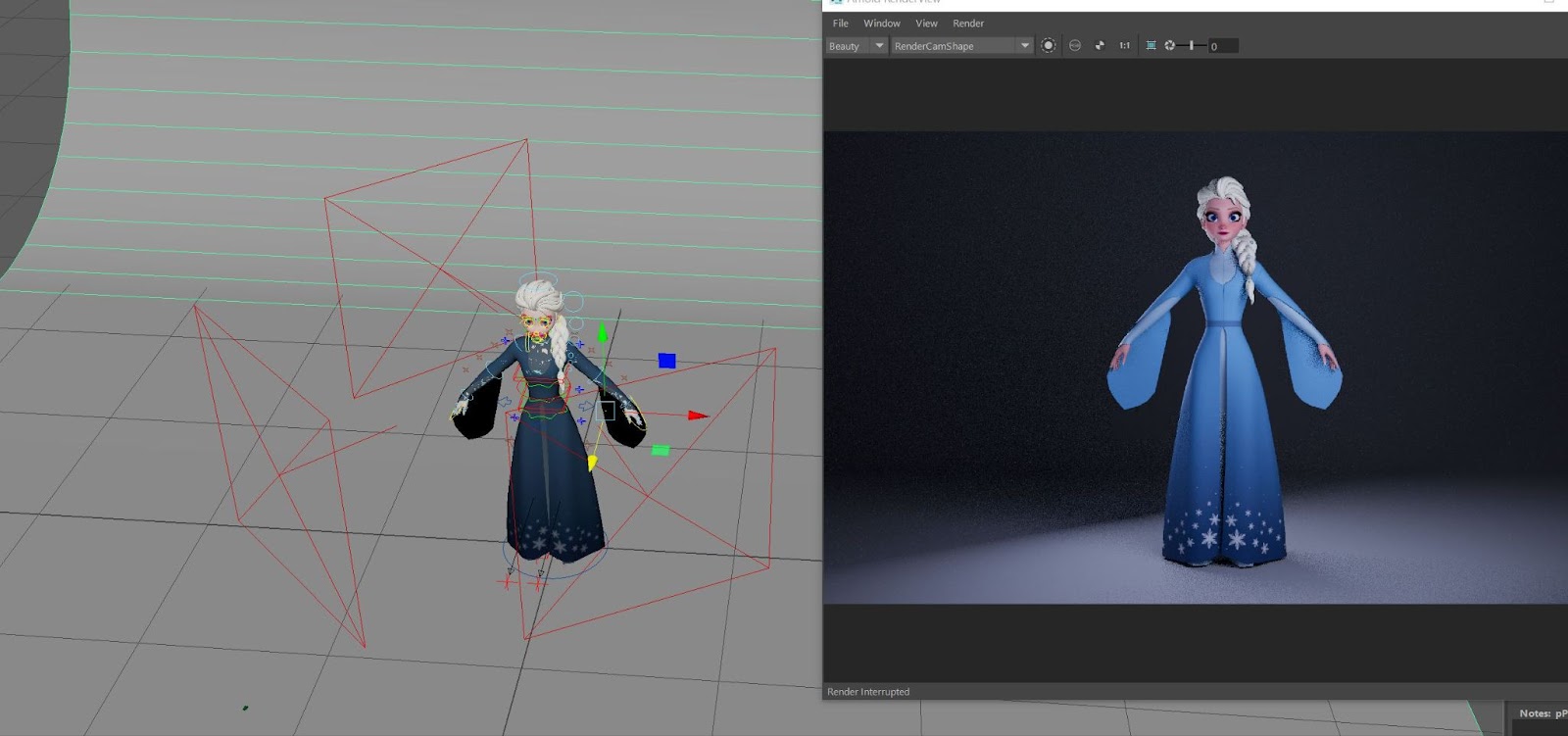

    For the presentation, I used a three-point lighting setup for the beauty renders and an HDRI skydome for the technical turnarounds. The final compositing was done in Nuke, including wireframe overlays to show the topology.

    Final Thoughts

    This project was a good opportunity to work more closely with 2D sewing patterns and understand how the construction of a garment affects both its shape and its behavior during simulation. I also learned how important it is to think about the topology early on, particularly around seams and areas that will need to deform.

    Software

    Marvelous Designer · Autodesk Maya · Substance Painter · Photoshop · Arnold · Nuke

    Credits

    • Artist: Laura Blázquez
    • Character Rig: Anim Props
    • Animations: Mixamo
    • Character Inspiration: Frozen (2013) — Disney (fan study, non-commercial)
